Motorized Linear Stages
Ball-screw driven single-axis translation on crossed-roller or linear-ball guideways.
Standard models17in this series
Travel15–50mm total
Payload3–20kg
Models
17 in this series

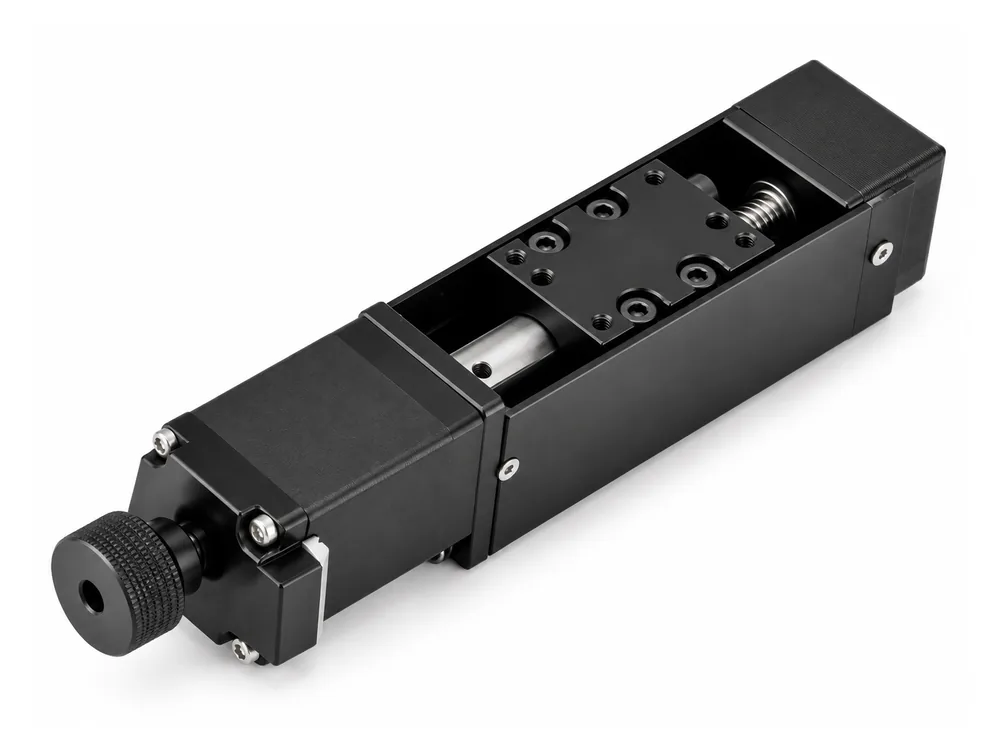

CYDX28-0601-15-28 Linear · Linear ball · Stepper
- Travel
- 15 mm
- Table
- 30×25 mm
- Repeatability
- ± 2 µm
- Load
- 4 kg

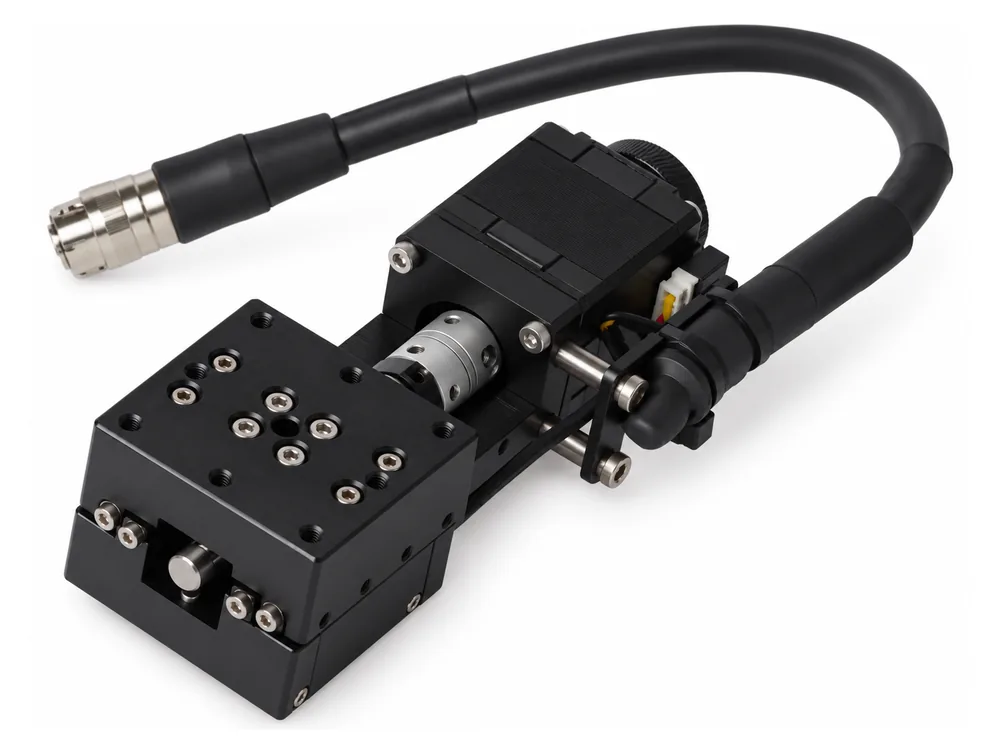

CYGXN40-0601-15-28 Linear · Crossed roller · Stepper
- Travel
- 15 mm
- Table
- 40×40 mm
- Repeatability
- ± 0.3 µm
- Load
- 4 kg
CYGXN60-0601-20-28 Linear · Crossed roller · Stepper
- Travel
- 20 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg
CYGXN60-0601-30-28 Linear · Crossed roller · Stepper
- Travel
- 30 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg

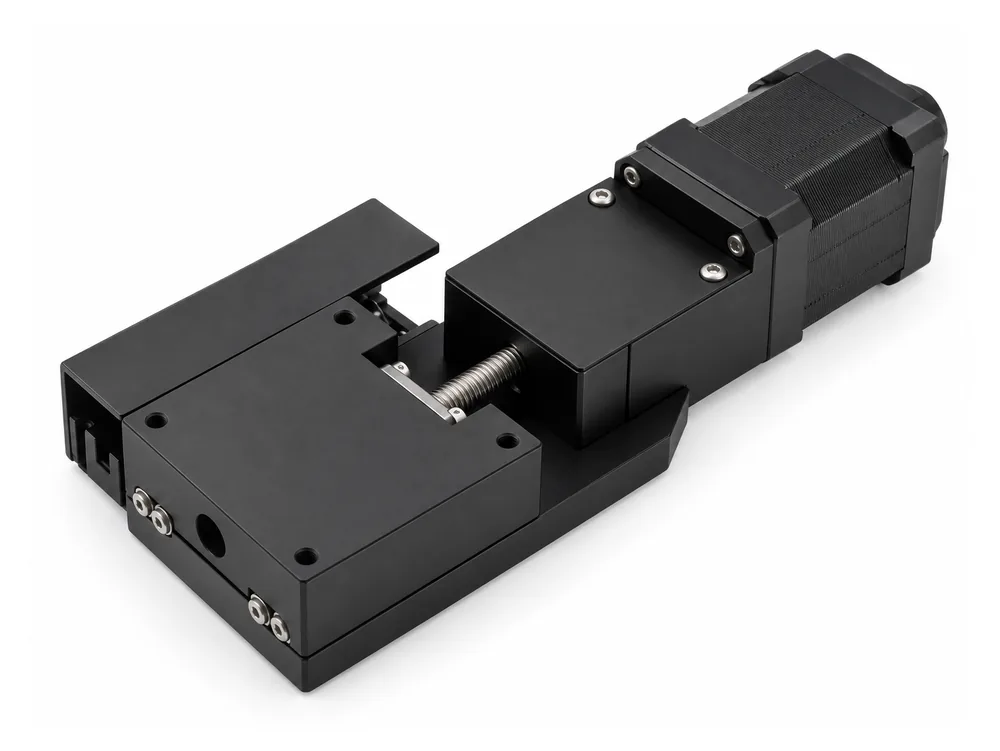

CYGX60-0801-25-42 Linear · Crossed roller · Stepper
- Travel
- 25 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 7 kg

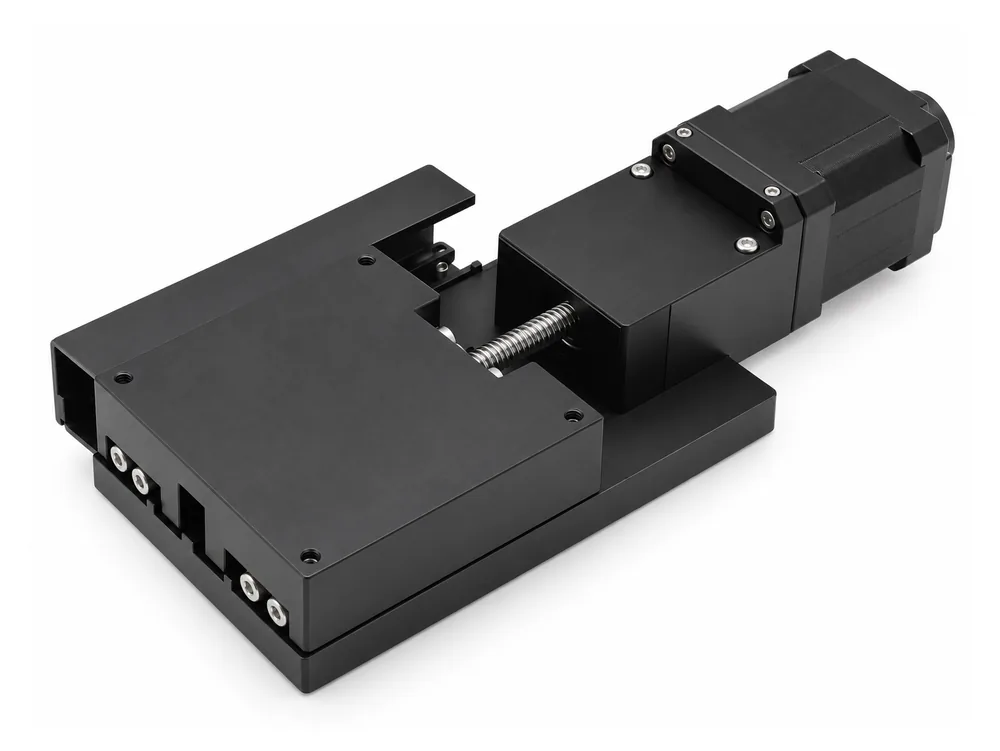

CYGX80-0801-30-42 Linear · Crossed roller · Stepper
- Travel
- 30 mm
- Table
- 80×80 mm
- Repeatability
- ± 0.3 µm
- Load
- 12 kg

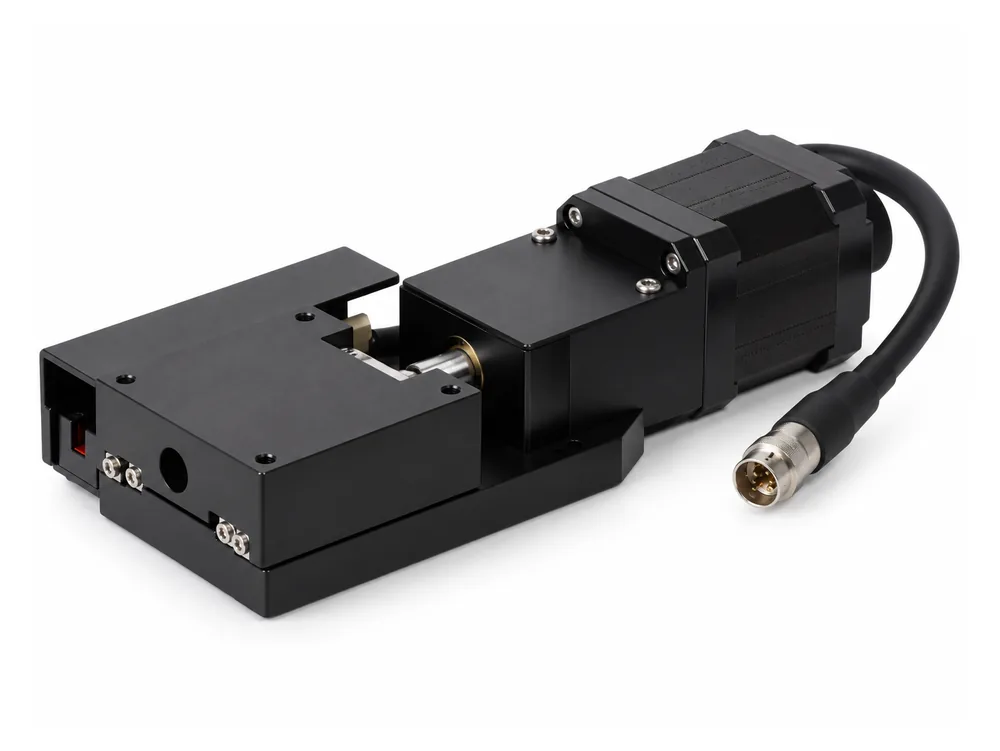

CYGXA60-0601-20-28 Linear · Crossed roller · Stepper
- Travel
- 20 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg
CYGX80-0802-50-42 Linear · Crossed roller · Stepper
- Travel
- 50 mm
- Table
- 80×100 mm
- Repeatability
- ± 0.3 µm
- Load
- 20 kg

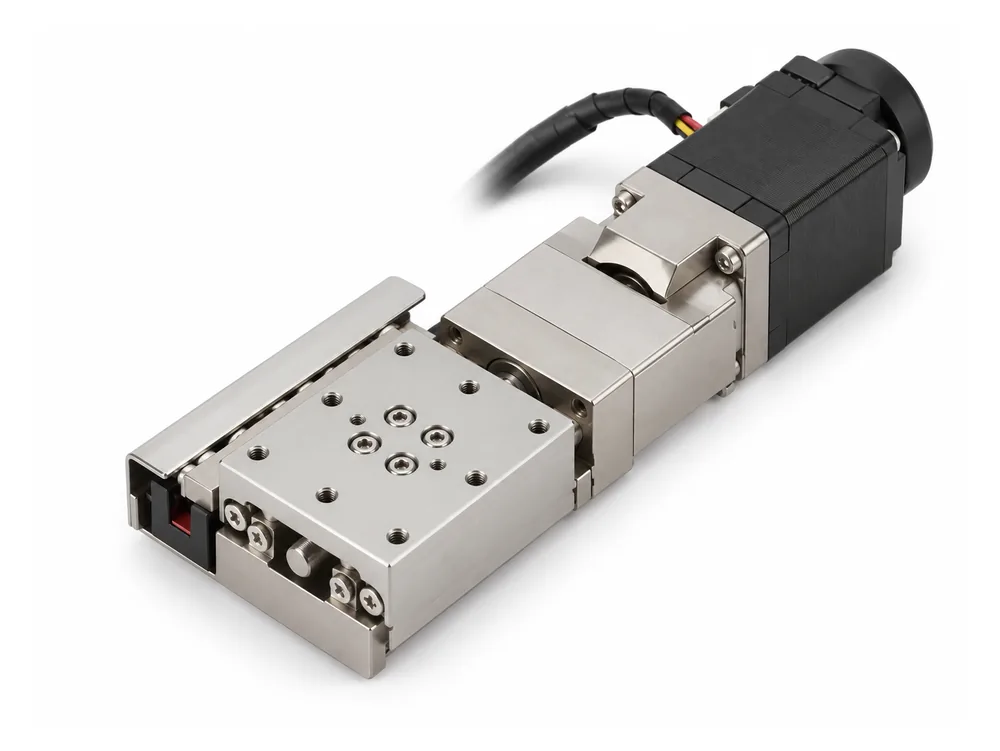

CYGXSD40-0601-15-28 Linear · Linear ball · Stepper
- Travel
- 15 mm
- Table
- 40×40 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg

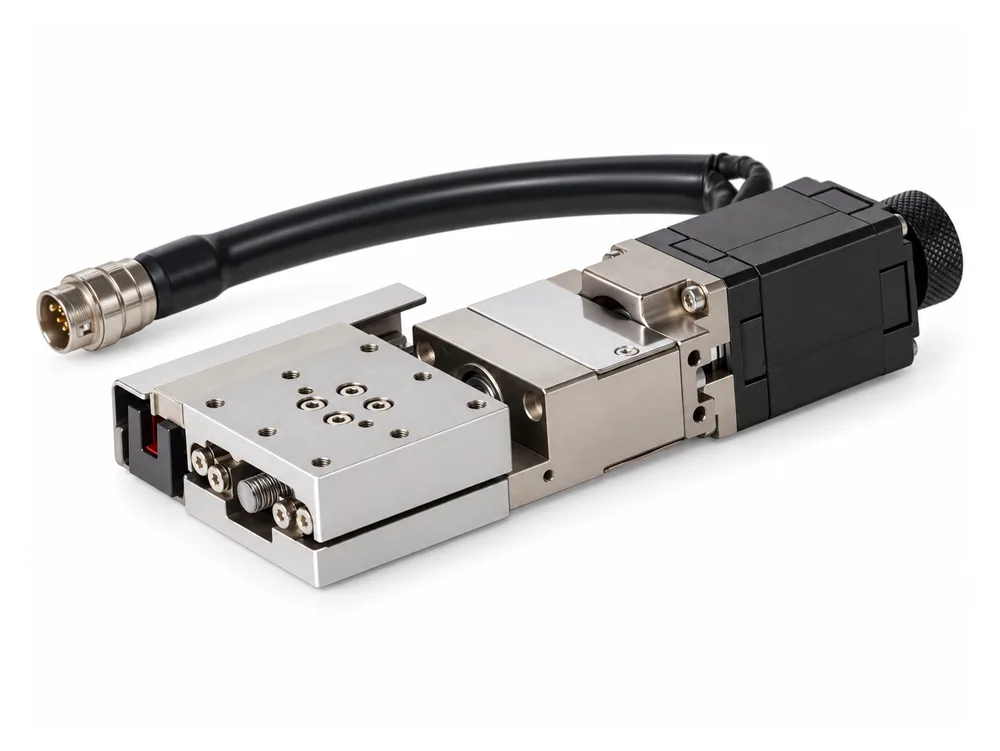

CYGXS40-0601-15-28 Linear · Linear ball · Stepper
- Travel
- 15 mm
- Table
- 40×40 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg

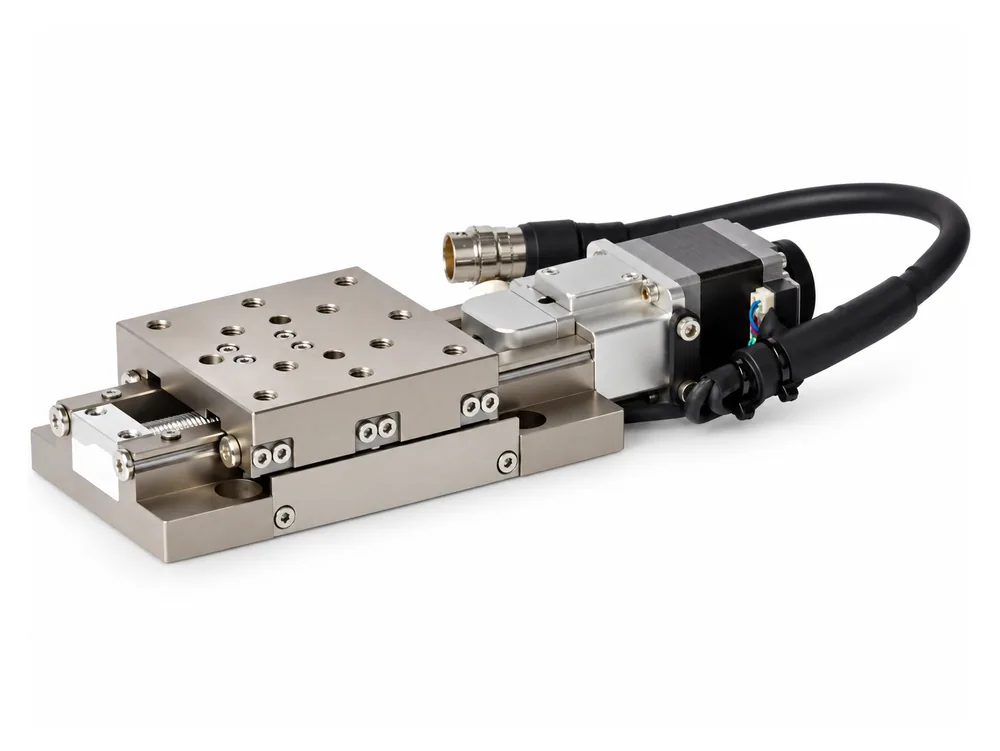

CYGXS50-0801-30-28 Linear · Linear ball · Stepper
- Travel
- 30 mm
- Table
- 50×66 mm
- Repeatability
- ± 0.3 µm
- Load
- 10 kg

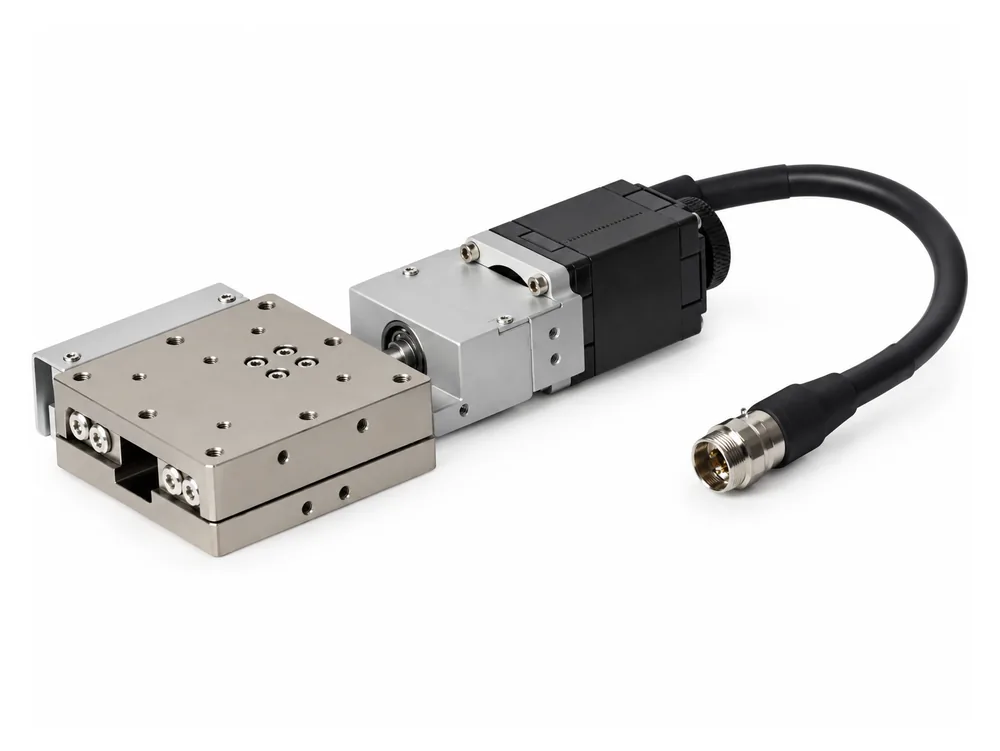

CYGXS60-0601-20-28 Linear · Linear ball · Stepper
- Travel
- 20 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg

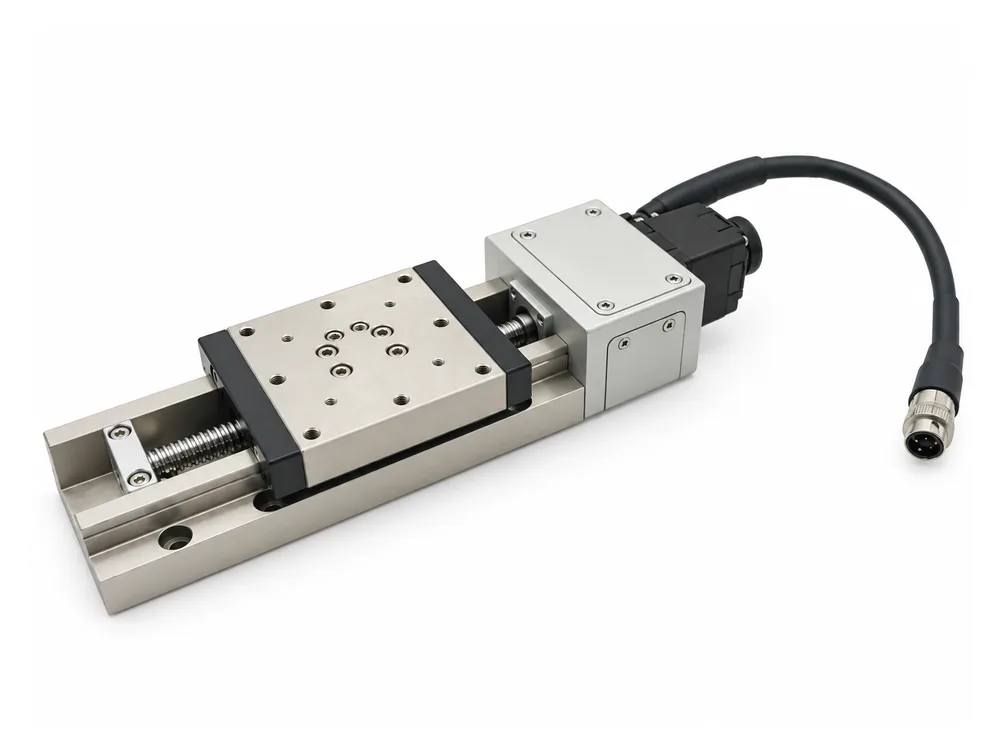

CYGXS60-0802-50-28 Linear · Linear ball · Stepper
- Travel
- 50 mm
- Table
- 60×60 mm
- Repeatability
- ± 0.3 µm
- Load
- 14 kg

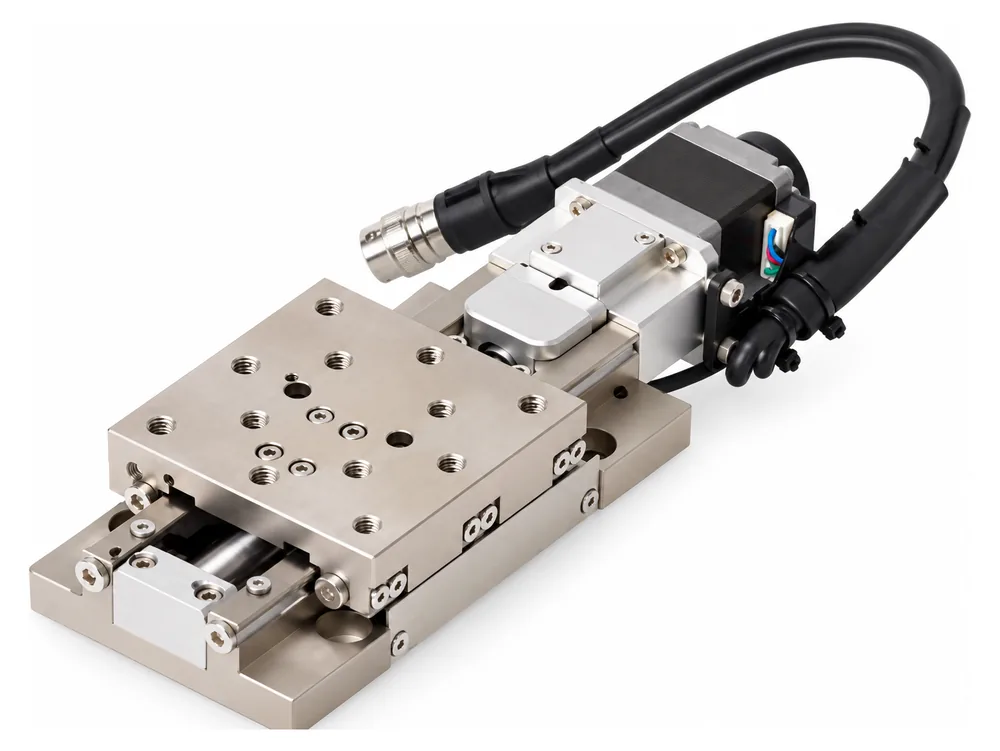

CYGXNS65-0801-50-28 Linear · Linear ball · Stepper
- Travel
- 50 mm
- Table
- 65×65 mm
- Repeatability
- ± 0.3 µm
- Load
- 7 kg

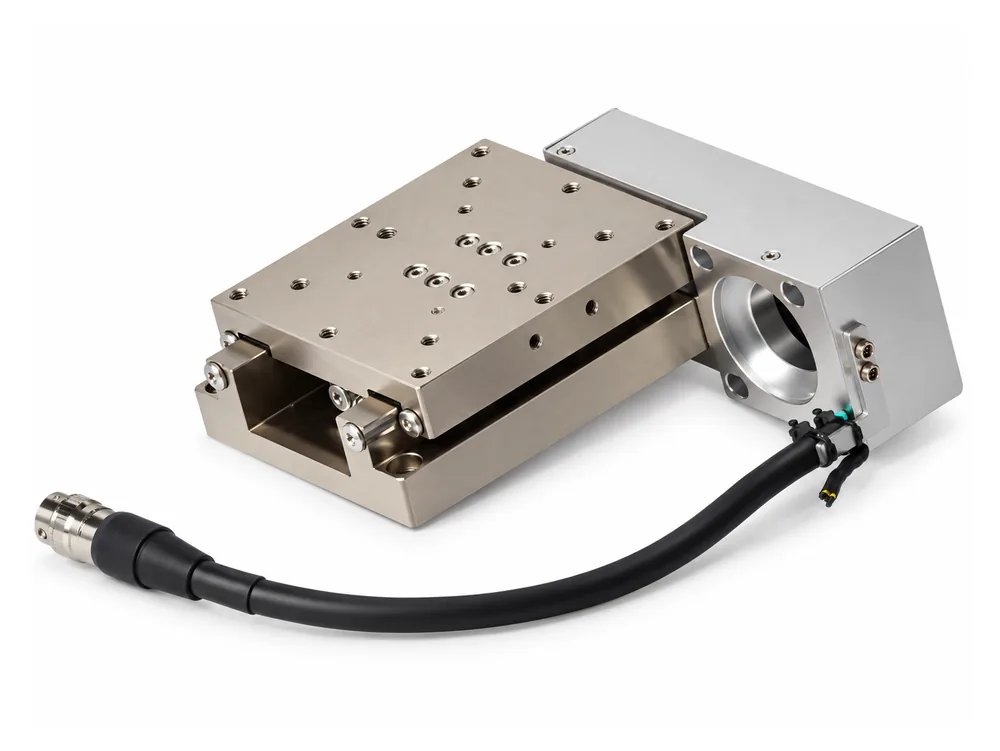

CYDXNS80-0801-20-28-BL Linear · Linear ball · Stepper
- Travel
- 20 mm
- Table
- 80×80 mm
- Repeatability
- ± 0.3 µm
- Load
- 5 kg
CYDXNS80-0802-30-28 Linear · Linear ball · Stepper
- Travel
- 30 mm
- Table
- 80×80 mm
- Repeatability
- ± 0.3 µm
- Load
- 10 kg
Every figure on these pages is marked with where it comes from: the published shipping specification, a value normalised from the catalogue, or a field we have not yet measured. Nothing is filled in with a zero.
